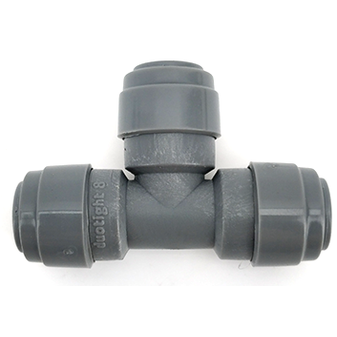

This Duotight fitting makes it easy to split your gas line and run it to multiple kegs. Use one tee for a dual tap kegerator or two tees for a triple tap. You can also pair the tee with the Push-In Pressure Gauge to use the gauge with the BlowTie Spunding Valve. Compatible with EVABarrier 8 mm OD Tubing (D1717 & D1718).

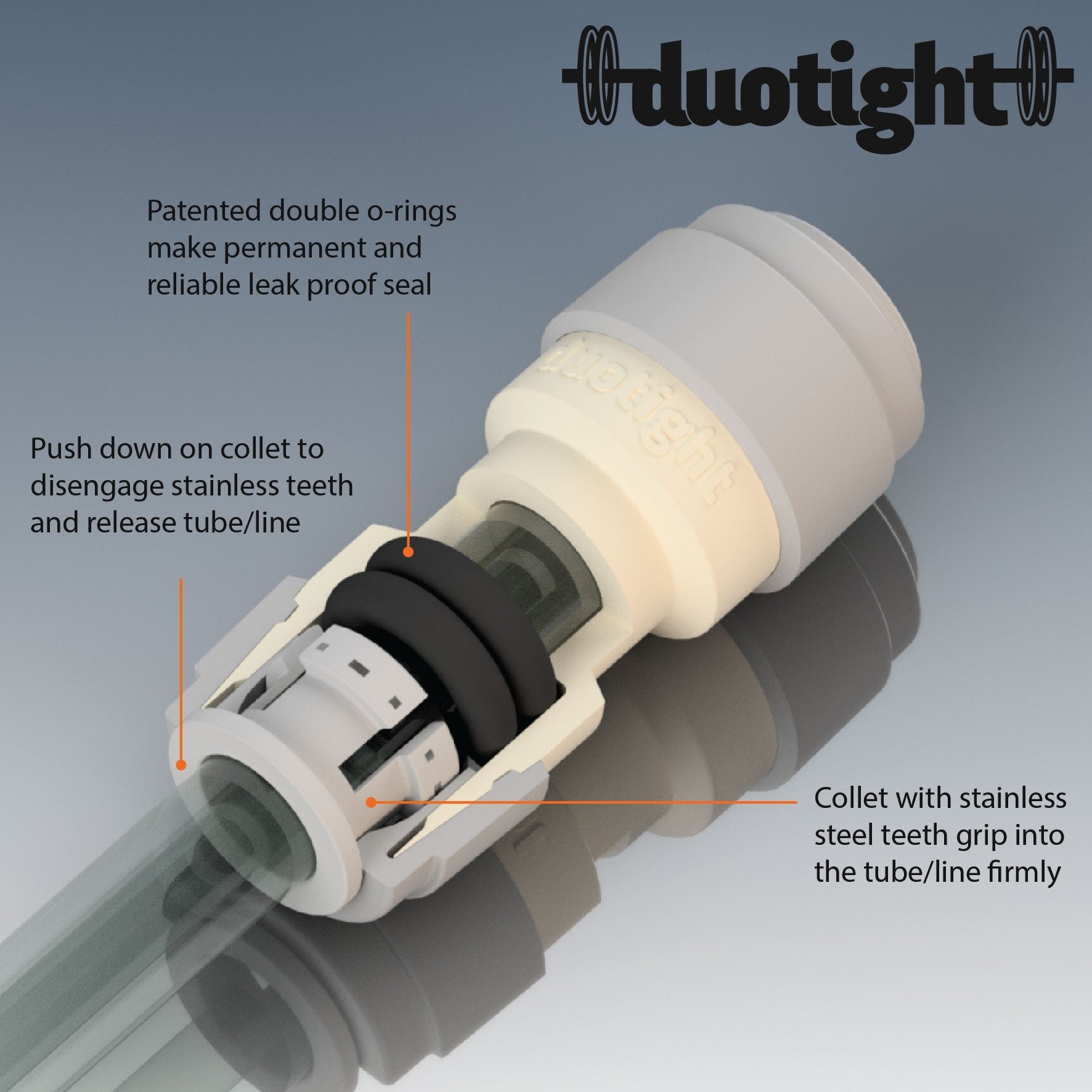

Duotight offers superior quality when compared to other push-in fittings. Their double EPDM O-ring design provides a more complete and reliable seal, protecting against leaks even when tubing is bent around tight corners. They are suitable for both beverage and gas applications, and are pressure rated to 100 psi. Tubing can be released by simply pushing in the collet and pulling the line out. No need for clamps or cutting lines!

Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

Kegland Part number: KL02387

  • 10 for 10 on one-step connections with no leaks.
  • So simple. One gas tap for two kegs. No need for a manifold with this.
  • Work as advertised. Easier to deal with than barbs.
  • 5 stars: 8 (89%)
  • 4 stars: 1 (11%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
j
john n.
ready for a three way?

So simple. one gas tap for two kegs. No need for a manifold with this.

D
David L.
DuoTight Fittings

As with all of the DuoTight fittings these work exceptional well.

B
Blake U.

I used this in my setup for the “nukatap counter pressure bottle filler” coming from the regulator to the counter pressure bottle filler and then to the keg itself using Duotight QD’s.

S
Steven J.J.
Duotight Push-In Fitting - 8 mm (5/16 in.) Tee

Easily connects and seems to work well

E
Evergreen L.&.S.c.D.G.

Love it. Switching over to duotight type fittings. I ordered a couple this last time but one doesn't grab on to hose just pulls back out. Im sure its just bad fitting but overall love em. All others work excellent!!

D
Douglas I.

Quickly measure (twice) cut tubing once press in to connect and create your plumbing masterpiece. 10 for 10 on one-step connections with no leaks.

P
Pete P.
Great

Work as advertised. Easier to deal with than barbs.

J
Jeff J.
Duotight is a great way to go if you're just getting into kegging!

I used Duotight Tees and Duotight FFL (Flare) fittings in my keezer project. They are easy to use. I suggest you get the tool to cut the tubing line square and seat the tubing completely in the fittings - (I used some Star San to lubricate the tubing for insertion). They will work great unless you're turning a very sharp curve - avoid those. Best of all you can disengage the fittings and reuse them. Great stuff...the cutter is the only special tool needed.

J
Jason J.

Easy to use. Works well.

A
Anonymous

I currently have Bevflex 5/16 ID X 9/16 OD Beer Line Hose and Gas Line Hose (blue & Red). Will Duotight fittings work with this hose?

MoreCoffee!

These are made to work with 8mm EVAbarrier tubing which is a more rigid type of tubing than most beer line hoses and it has a much smaller OD than your 9/16 hose. There are DuoTight fittings that will work with (or adapt to) 1/4-inch OD tubing (0.635mm) and 3/8-inch OD tubing (9.5mm) though.

A
Anonymous

does this item include the 3 pieces of tubing pictured or is it just the gray fitting?

MoreCoffee!

The tee comes with no tubing. I ordered a large roll of tubing you can always use the extra.

MoreCoffee!

Just the fitting is include. The tubing is extra. Make sure you insert a nice round piece of tubing. Tubing that has been bent or formed around too tight of a radius may have a set in an oval cross section and will not seal reliably.

MoreCoffee!

Just the fitting pretty that's stated in the description.

MoreCoffee!

I am pretty sure the tubing is sold separately.

MoreCoffee!

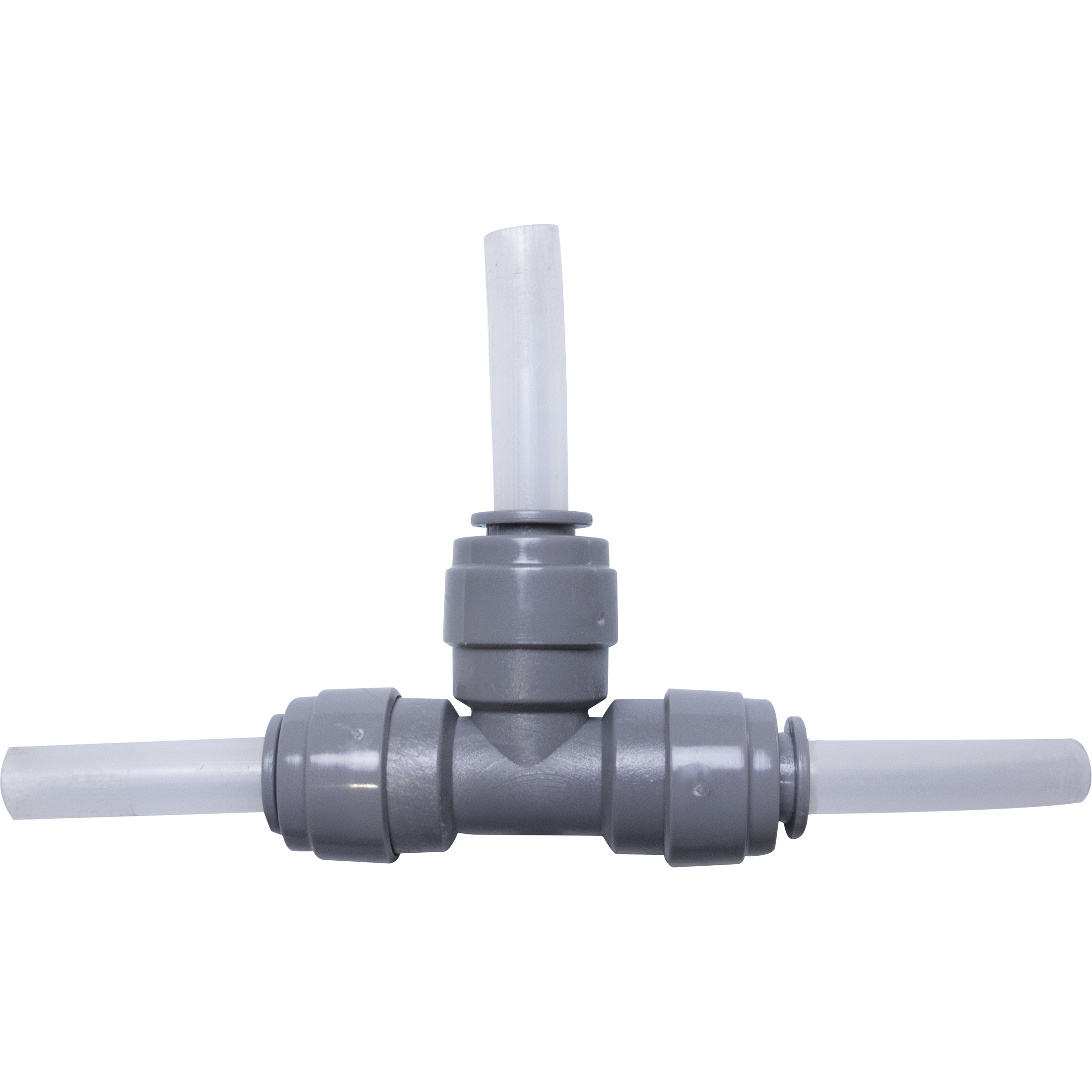

Grey fitting only. The pictured tubing is just to show what it looks like once installed.

MoreCoffee!

Just the fitting

MoreCoffee!

Fitting only.

MoreCoffee!

It is just the gray fitting.

MoreCoffee!

Just the gray fitting.

MoreCoffee!

Fitting only.

MoreCoffee!

Just the fitting. These are awesome by the way!

MoreCoffee!

It’s just the fitting. The tubing is separate.

MoreCoffee!

Just the fitting of course! The tubing would be routed/cut into by you .

MoreCoffee!

Just the fitting. Should be compatible with any Eva barrier tubing that’s 8mm OD and it’s suitable for gas or bev lines.

MoreCoffee!

Just the gray fitting.

MoreCoffee!

Just the gray tee. The hose in the picture is just to show the application of the tee.

MoreCoffee!

Just the fitting

MoreCoffee!

it is just the fitting
